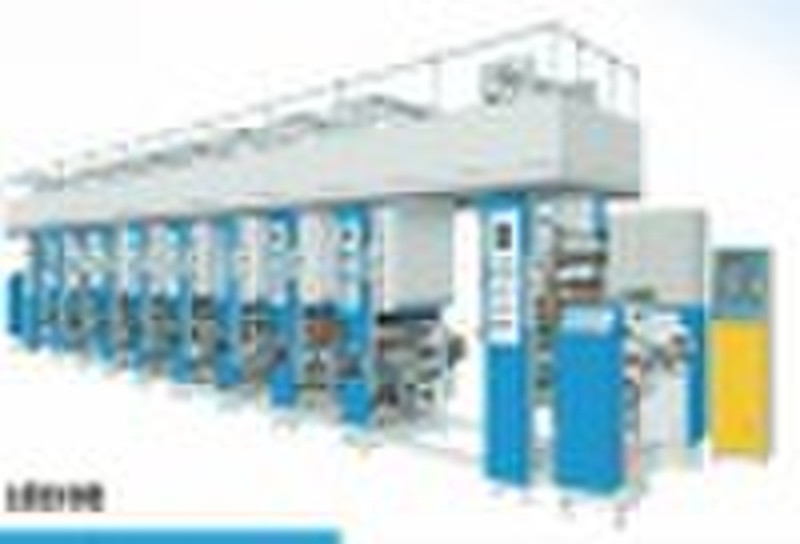

Gravure printing Machine

Gravure Printing Machine KS-AY81000A 1, The flow: From right to left 2, Printing color: 8 colors 3, The maximum printing width: 1000mm 4, The maximum machine speed: 100M/MIN(Calculate st printing roller of 200 mm ) 5, The maximum printing speed: 80M/MIN (PVC shrink film: 60M/MIN) 6, Unwind diameter: 600mm 7, Rewind diameter: 600mm 8, Plate diameter: 120-300mm 9, Registration Accuracy: Vertical: ± 0.2mm (Automatic Barebone tracking); Horizontal :±0.2mm (at Manual). 10, Tension scope: 2-30kg 11, Tension accuracy: ± 0.5kg 12, Paper core for rewinding and unwinding: 76mm 13, Impression: 500kg 14, A rocky ledge of scraper: ± 5mm 15, Dry: Electrical heating 16, Dry power for electrical heating: 180KW 54KW (Normal start-up) 17, Gas pressure: > 0.6Mpa 18, Main motor power: 11KW 19, Total power: 120KW 20, Gross weight: 16000kg or so 21, Printing materials: PET 12-40um BOPP 20-60um CPP 20-60um Laminating film 15-60um PVC shrink film 25-60um Others: A. Delivery date: Product inspection within 60 days after receiving the deposit. B. The machine comes with a years guarantee for free, sales service for spare parts is long-term provided. C. The materials for testing should be provided by the buyer.
